This is the page where we document the complete Sprint Pre 2 procedure, hardware and software.

Contents

Hardware

Rich Dunbar has created a very detailed step by step pictorial guide for swapping a Sprint Pre- comms board into a Pre 2. Important note that the Sprint Comm board must be activated PRIOR to this process. Cannot activate a Sprint Comm board through the Pre 2 at this time. You should also have already read through and understand the entire software portion (Step 16 in this guide) BEFORE starting this process. Pay special attention to Step 2: Prepare Your Palm Profile.

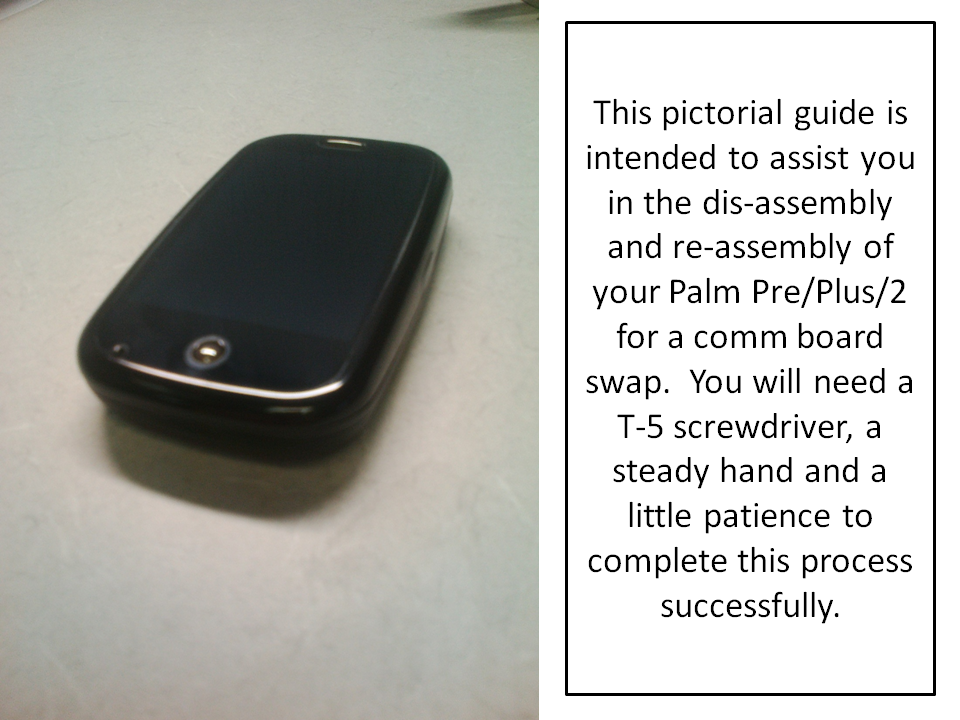

Step 1 - Introduction


Step 2

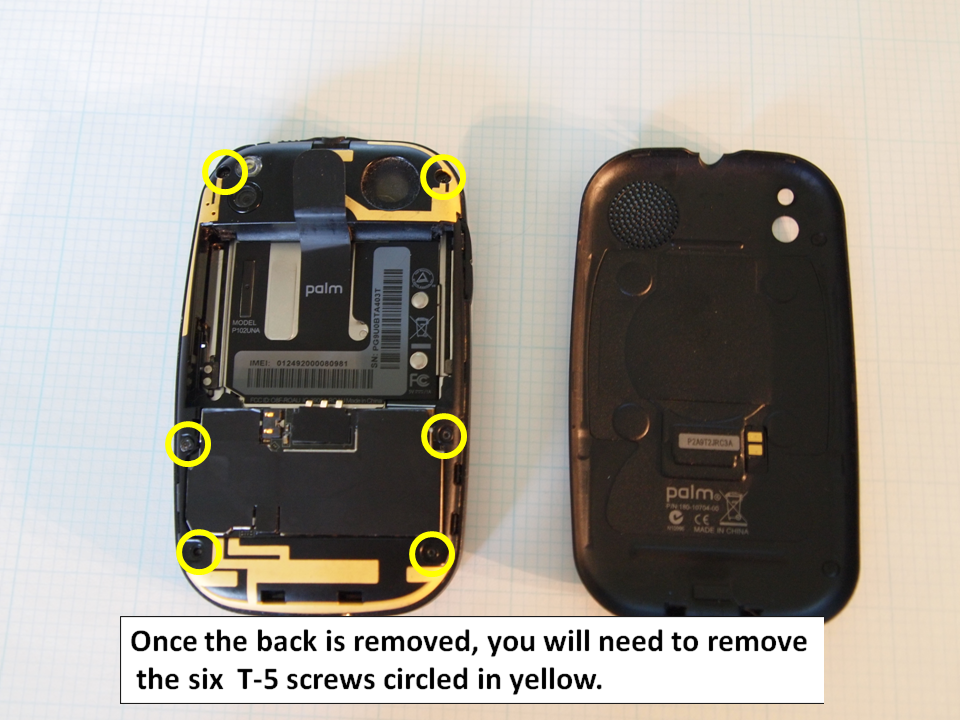

Step 3

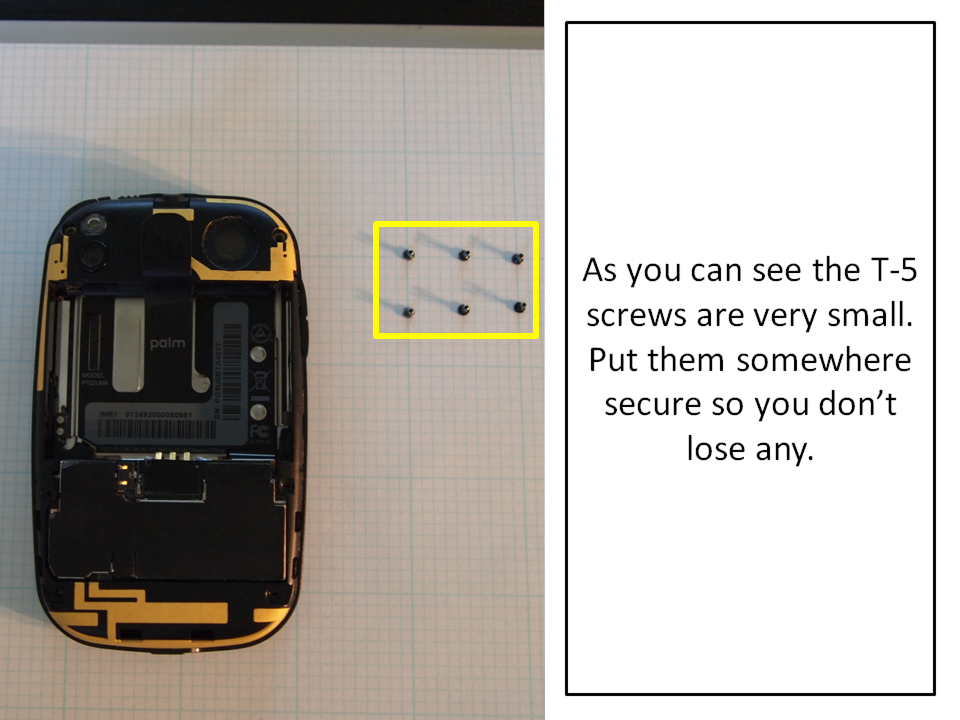

Step 4

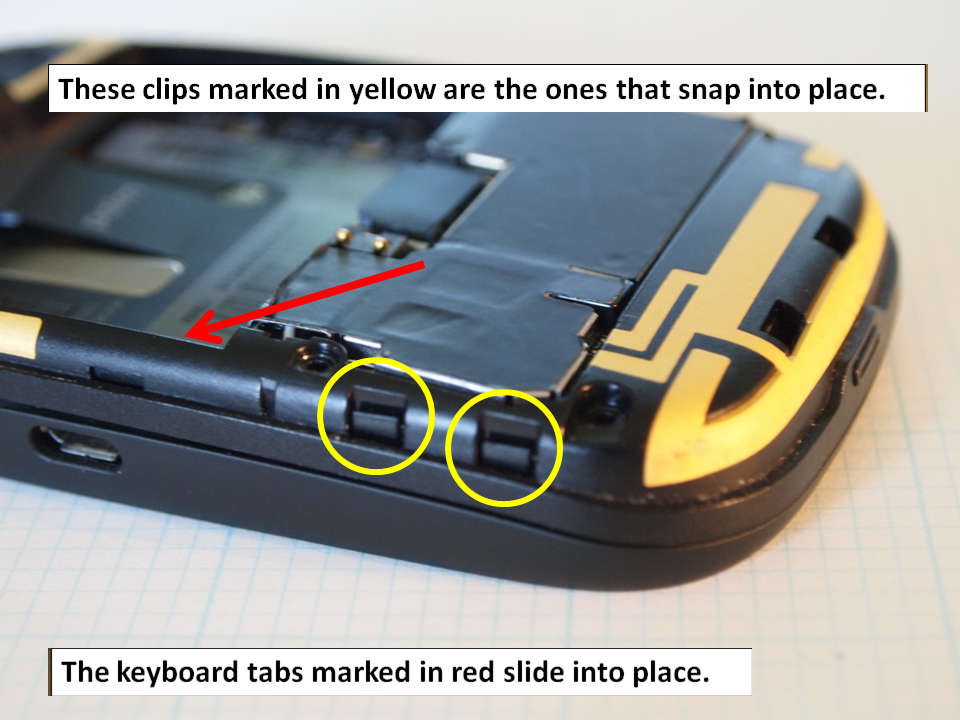

Step 5

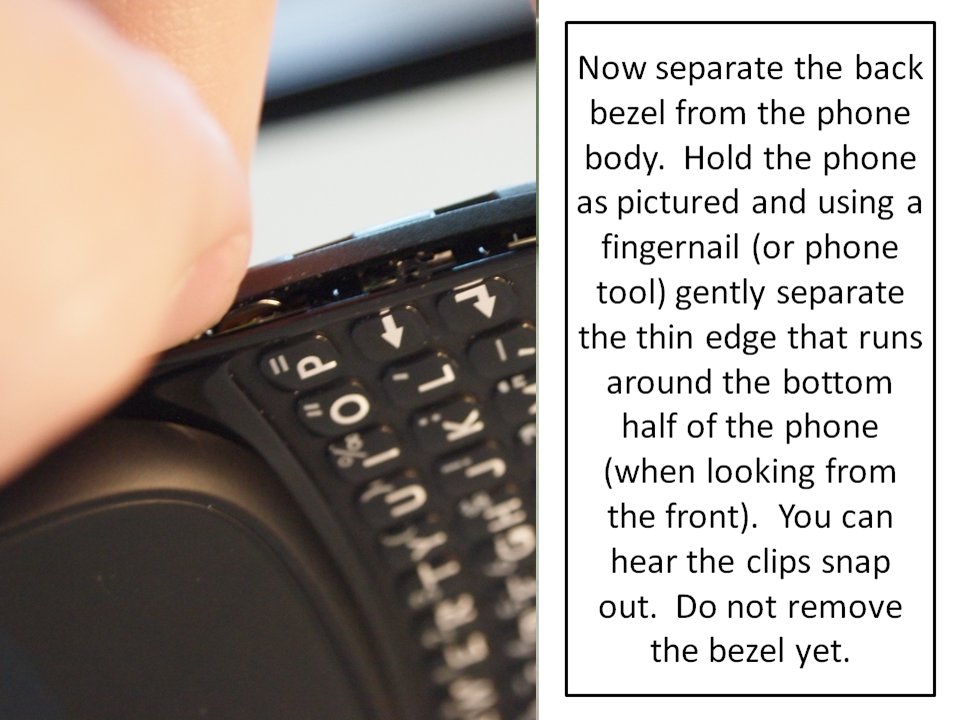

Step 6


Step 7

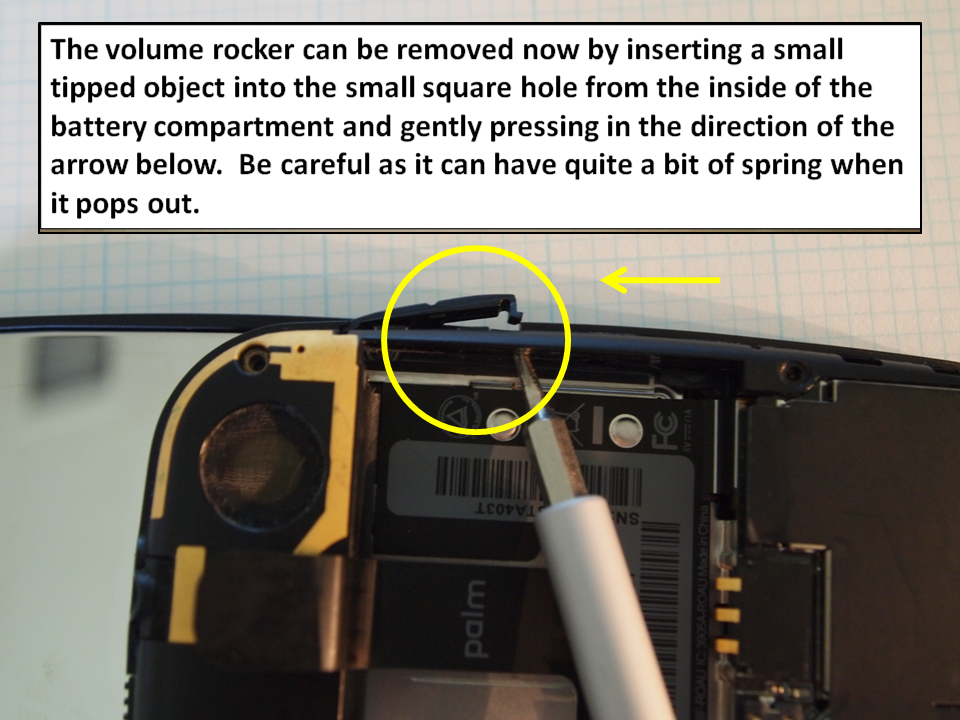

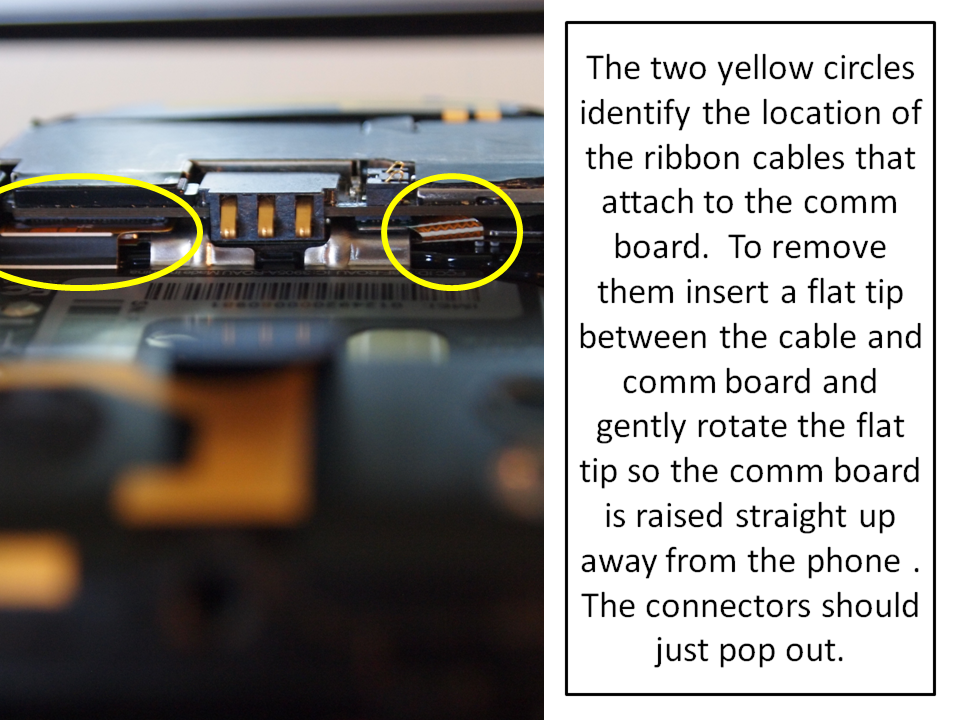

Step 8


Step 9

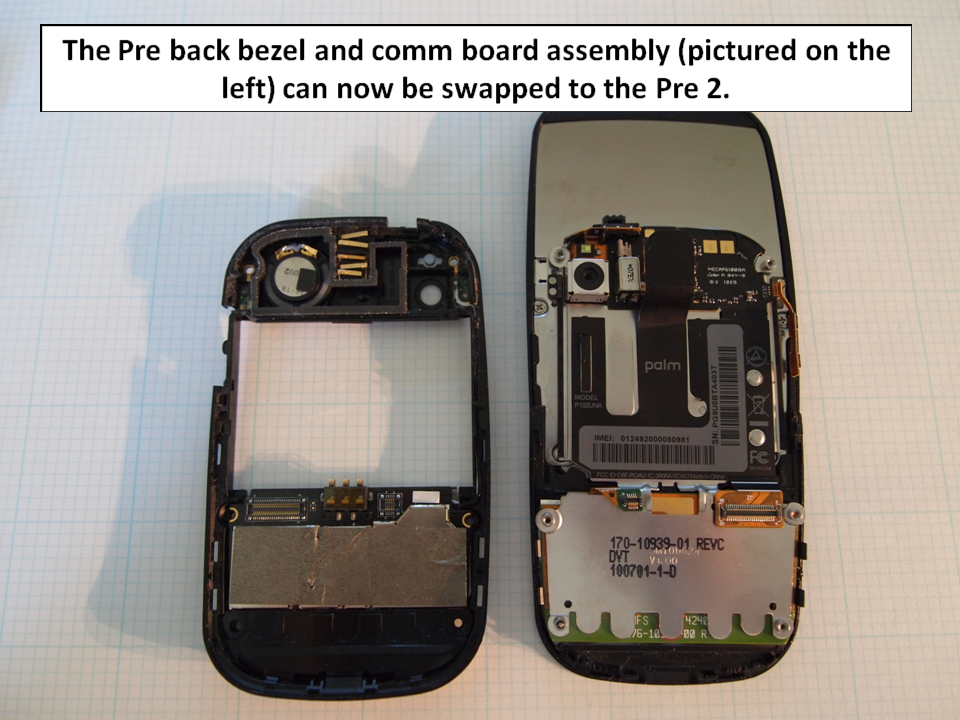

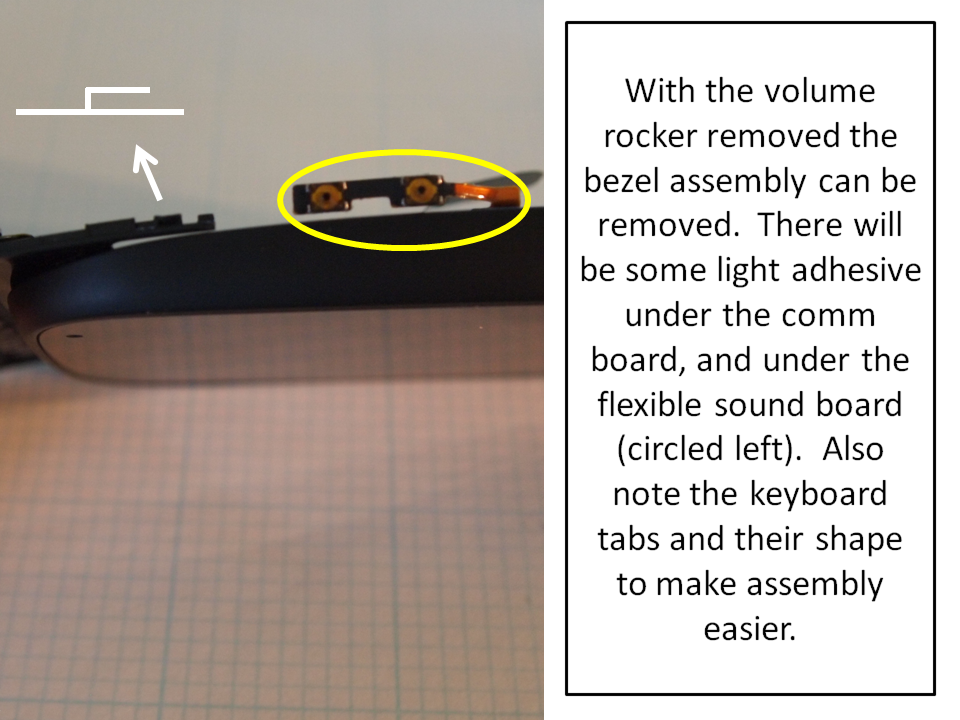

Step 10


Step 11

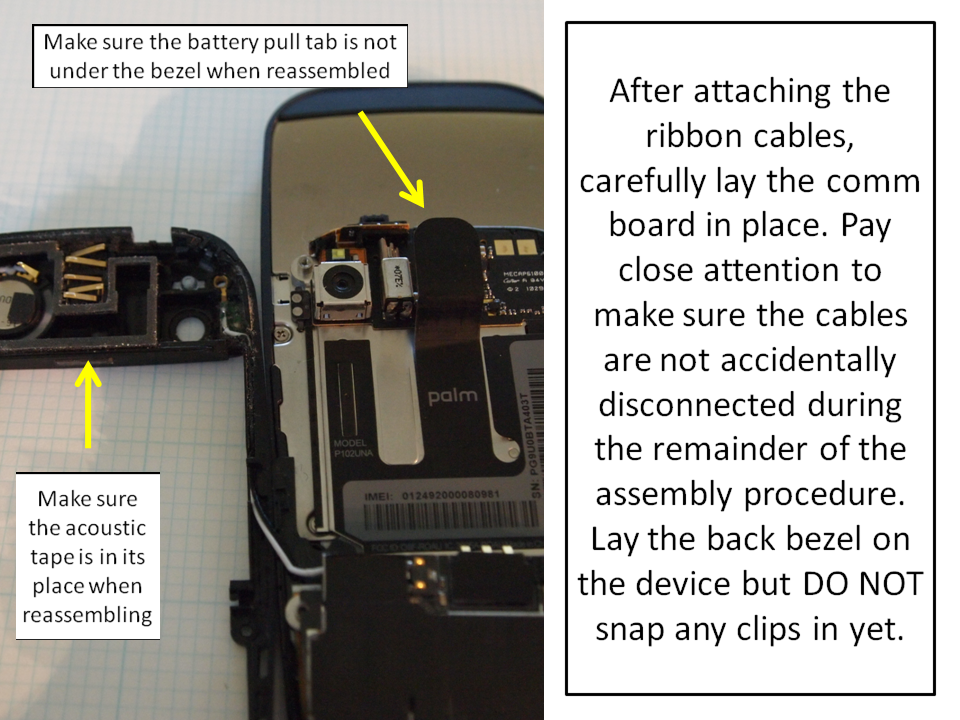

Step 12

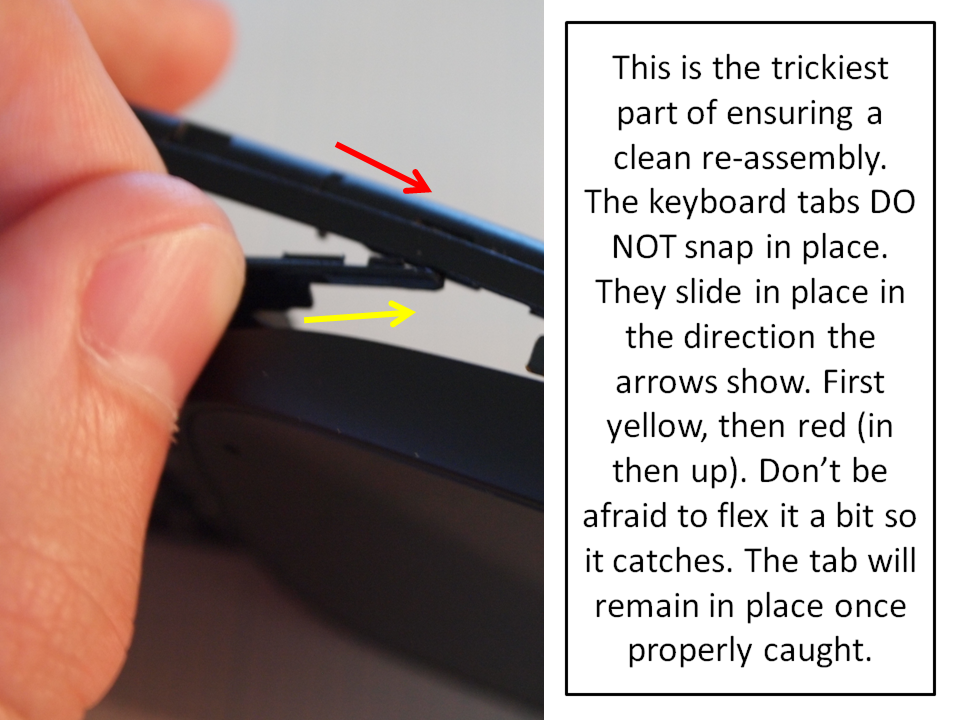

Step 13


Step 14

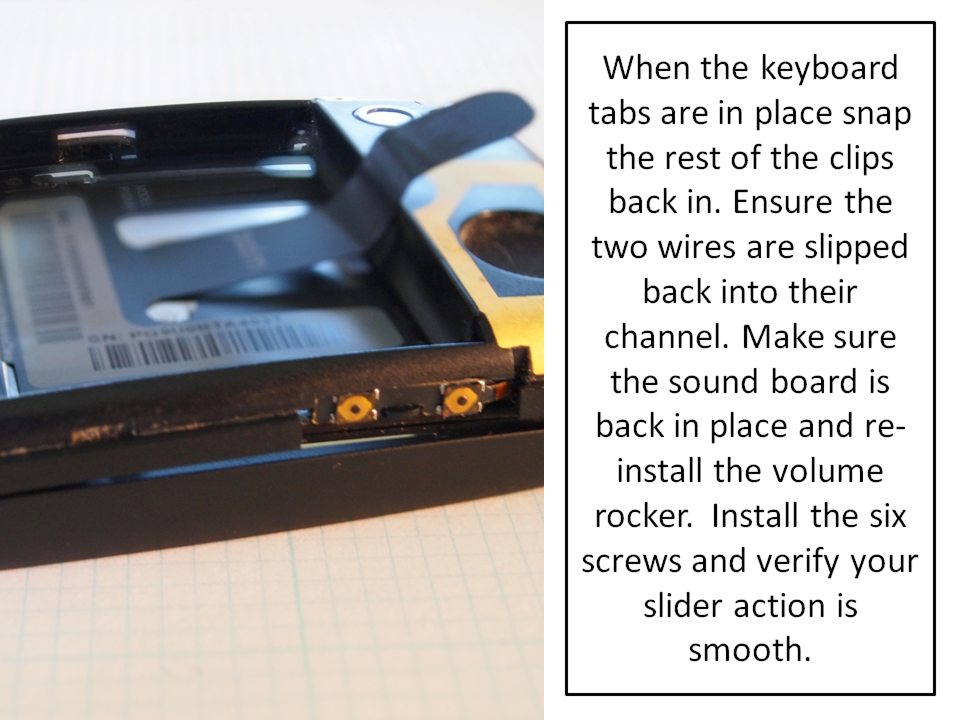

Slide14.PNG YOU HAVE TO BE EXTRA CAREFUL WITH THE VOLUME ROCKER RIBBON AS IT WILL BREAK IF NOT ALIGNED PROPERLY

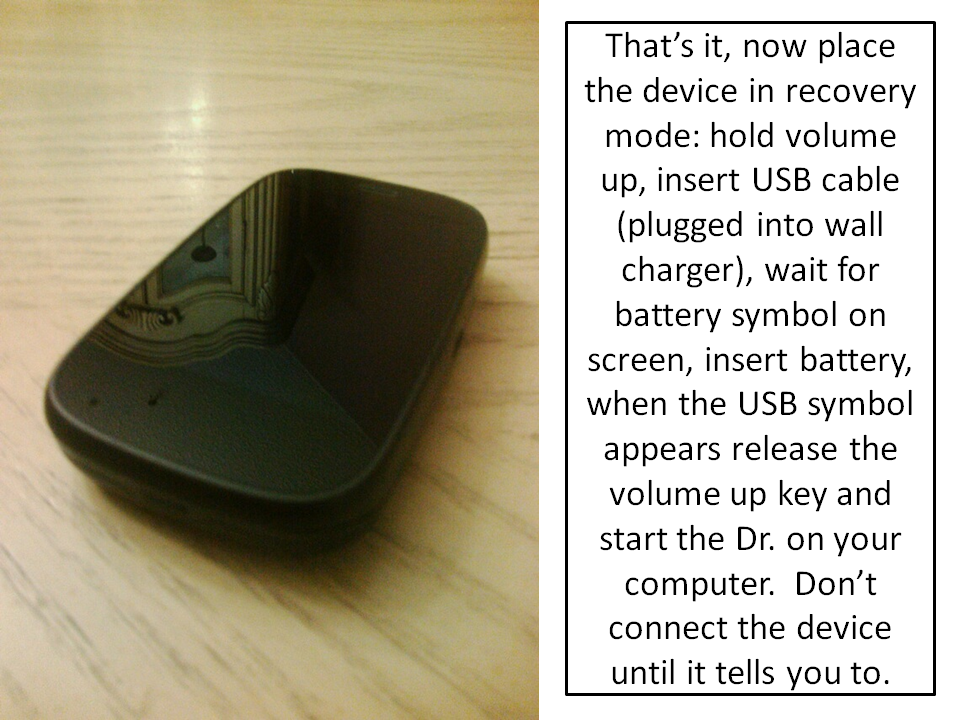

Step 15


Software

Step 16

Follow the instructions on WebOS_2_Upgrade and use the ./scripts/meta-sprint-franken-unlocked-pre2-2.1.0 script.
